Should I Choose 40FR or 40HQ for My Capsule House Shipment?
Should I Choose 40FR or 40HQ for My Capsule House Shipment?
Many first‑time resort and camp investors ask the same practical question: Should I choose 40FR or 40HQ for my capsule house ocean shipment?
Picking the wrong container will trigger unexpected extra freight fees, cargo scratches or port delays. Besides extra‑large fully‑assembled units, A‑Series and E‑Series complete units with factory‑integrated balconies can load directly into 40HQ without balcony disassembly. ROVELLC also provides a M‑Series semi‑assembled shipping solution, which fits larger‑size modules into standard 40HQ containers. This guide compares all available options, matches capsule‑house series to suitable container types and shares a practical pre‑booking checklist for your overseas project.
Key Takeaways
‑ Three available shipping solutions for ROVELLC capsule house: extra‑large fully‑assembled units mostly require 40FR flat‑rack containers; A‑Series and E‑Series fully‑assembled units with integrated balconies can be shipped complete inside sealed 40HQ high‑cube dry containers. M‑Series is the semi‑assembled variant also for 40HQ shipment.
‑ Semi‑assembled capsule house (M‑Series) enables up to 30.6 m² interior space inside a 40HQ container, cutting ocean freight costs by around 70 % compared with 40FR. Only 2‑3 workers are required and exterior‑shell assembly can be finished within 2‑3 hours after arrival.
‑ 40FR flat‑rack incurs higher ocean freight and port handling fees with industrial‑grade heavy‑duty tarpaulin for full ocean‑voyage protection; 40HQ offers lower rates and full‑enclosed cargo protection but has strict internal dimension limits for fully‑built complete units.
‑ On a 40FR flat‑rack: normally only 1 extra‑large fully‑assembled unit can be loaded; two small‑size fully‑assembled units are acceptable if overall dimension and payload limits are satisfied.
‑ Your capsule‑house series, assembly form (fully‑assembled vs semi‑assembled), outer dimensions, height and total weight decide which container type you can use; never select container type only based on freight quotation.
‑ Improper container selection may lead to cargo damage, port demurrage charges or even inability to load your finished unit. Always confirm packing dimensions and assembly mode with your manufacturer before booking vessels.
‑ Request factory‑provided packing drawings, exact gross weight and outer dimensions, and share these documents with your freight forwarder for accurate freight quotation.
What Is the Difference Between 40FR Flat‑Rack and 40HQ High‑Cube Container
Container type is determined by your capsule‑house outer dimensions, weight and assembly status: fully‑assembled compact, semi‑assembled or extra‑large fully‑assembled.

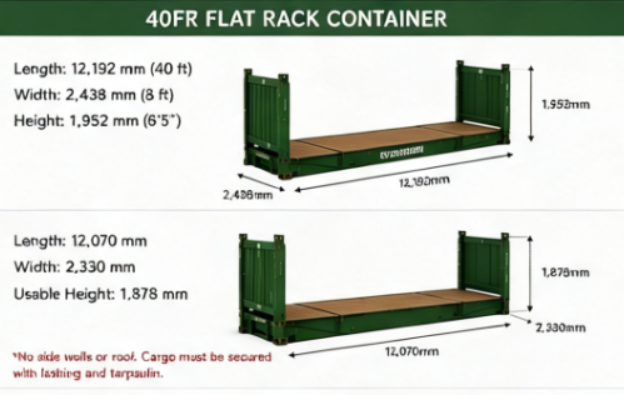

40FR Flat‑Rack Container
40FR flat‑rack is an open‑sided, open‑top cargo platform without side walls or roof. Extra‑large fully‑assembled capsule houses which exceed width or height limits of standard dry containers rely on flat‑rack loading. Cargo sits on the metal platform and is secured with heavy‑duty lashing belts, fully covered by industrial‑grade heavy‑duty tarpaulin for complete ocean‑voyage protection.
40HQ High‑Cube Dry Container
40HQ is a fully‑enclosed sealed dry van shipping container with fixed metal walls and roof. It supports two distinct use‑cases:
Fully‑assembled capsule house (A‑Series / E‑Series): factory‑integrated balcony structure, loaded as a whole unit, no balcony disassembly required;
Semi‑assembled capsule house (M‑Series): main interior frame shipped inside container; exterior aluminum shell components are packed separately and assembled locally after arrival.
It provides complete shelter against seawater spray and rain during transit.
Comparison Item | 40FR Flat‑Rack Container | 40HQ High‑Cube Dry Container |
|---|---|---|
Cargo environment | Open platform, fully covered with industrial‑grade heavy‑duty tarpaulin for ocean‑voyage protection | Fully enclosed sealed metal compartment |
Supported capsule‑house status | Extra‑large full factory‑pre‑assembled complete unit | ① Fully‑assembled finished unit: A‑Series, E‑Series (integrated balcony, no disassembly required) ② Semi‑assembled unit (interior frame + separate exterior shell parts): M‑Series |
Applicable ROVELLC series | S‑Series, V‑Series, R‑Series, C‑Series extra‑size fully‑assembled units | Fully‑assembled: A‑series, E‑series Semi‑assembled: M‑series (max 30.6 m²) |
Relative ocean‑freight cost | Higher; flat‑rack equipment surcharge applies | Lower, standard general‑cargo rate. M‑Series semi‑assembled solution can reduce sea‑freight cost by approx 70 % vs 40FR for comparable interior space. |
Weather‑related protection | Industrial‑grade heavy‑duty tarpaulin for full ocean‑voyage protection | Full enclosure protects shell & interior cargo |
Port handling complexity | High; requires heavy‑lift crane for loading & unloading | Standard container terminal workflow |
Additional local‑site work | Only lifting & utility connection, ~2 hours installation | ‑ A/E‑Series full‑unit: only lifting & utility connection, ~2 hours ‑ M‑Series semi‑assembled: 2‑3 workers, exterior‑shell assembly finished within 2‑3 hours |
Max loading quantity per container | Extra‑large unit: normally 1 unit only; two small‑size fully‑assembled units allowed if dimension & payload are compliant | 1‑2 A/E‑Series fully‑assembled units / 1 M‑Series semi‑assembled large‑size module |
Potential extra fees | Flat‑rack equipment rental, tarpaulin, special crane handling | Demurrage if overstay at terminal; M‑Series semi‑assembled requires minimal local‑site labour expense |
Important note: Not all destination ports maintain sufficient 40FR flat‑rack equipment stock. During peak shipping seasons, flat‑rack container shortages will extend your vessel‑booking lead‑time. A/E‑Series and M‑Series shipped via 40HQ avoid flat‑rack‑related port‑equipment risks.
Which Container Fits My ROVELLC Capsule House Series
Your capsule‑house physical size and assembly form directly govern which container solution you can adopt.
Series requiring 40FR Flat‑Rack (Extra‑Large Fully‑Assembled)
‑ S‑Series: extra‑size full‑assembled units with balcony / skylight structure
‑ V‑Series: extra‑size full‑assembled units with balcony / skylight structure
‑ R‑Series: extra‑size finished modules
‑ C‑Series: extra‑size fully‑assembled versions
These extra‑large finished units’ overall outer profile exceeds 40HQ internal space when fully assembled, so they cannot be inserted as complete units into sealed dry containers. They must be shipped as whole finished units via 40FR flat‑rack. Normally only 1 such extra‑large unit fits per 40FR. Small‑size fully‑assembled units can be loaded two‑in‑one on 40FR subject to dimension and payload compliance.
Series compatible with 40HQ High‑Cube
Fully‑assembled (A‑Series, E‑Series)
Complete factory‑finished capsule‑house units with factory‑integrated balcony. Balcony does not require disassembly. Ready for lifting and utility hook‑up after cargo arrives.
Semi‑assembled (M‑Series)
‑ Max achievable interior space 30.6 m², internal height >2.4 m.
‑ Main interior frame ships inside 40HQ; exterior aluminum shell panels are packed separately.
‑ On‑site assembly labour requirement: only 2‑3 workers, assembly completed within 2‑3 hours.
Reminder: Confirm assembly mode (fully‑assembled / semi‑assembled) with your supplier at quotation stage. Extra‑large S/V/R/C‑Series can only go with 40FR. A‑Series and E‑Series complete units with integrated balconies load directly into 40HQ with zero balcony disassembly. M‑Series semi‑assembled cuts ocean freight with very short on‑site assembly time and minimal labour cost.
Key Risks When Shipping With a 40FR Flat‑Rack
Since 40FR flat‑rack is an open‑platform solution, buyers need to pay extra attention to these common risks:
Tarpaulin tearing risk under heavy ocean wind
Strong ocean‑voyage wind may scratch or tear the tarpaulin.
‑ Mitigation: Require factory to use industrial‑grade multi‑layer heavy‑duty ocean‑going tarpaulins and reinforced edge lashing points. Request photos of finished tarpaulin‑covering before vessel departure.
Improper lashing causing unit shifting
Insufficient or incorrectly positioned lashing straps may let the capsule house shift during rough‑sea transportation, leading to frame stress deformation, glass cracking and shell denting.
‑ Mitigation: Lashing must anchor onto factory‑reserved dedicated lifting / tie‑down points, not randomly fasten onto exterior wall panels.
Port‑equipment shortage and delay
Peak shipping seasons create shortages of 40FR flat‑rack containers and port heavy‑crane resources, causing booking postponement and demurrage storage fees.
‑ Mitigation: Schedule shipping 4‑6 weeks ahead of your target departure date for flat‑rack cargo.
Best Practices If You Choose 40HQ High‑Cube
When you select 40HQ for A/E‑Series fully‑assembled OR M‑Series semi‑assembled capsule‑house units:
‑ For A/E‑Series full‑units: Factory pre‑optimised for 40HQ loading, no balcony disassembly needed. Double‑check overall outer dimension before loading. Add foam anti‑collision protection on corners, glass surfaces and exterior panels inside the container. Secure units with anti‑slide wooden bracing blocks to prevent shifting during sea transit.
‑ For M‑Series semi‑assembled projects: Confirm complete packing list of all exterior shell panels, gaskets, fasteners and assembly drawings before shipment. Prepare 2‑3 trained local assembly manpower well before cargo arrival.
‑ Ask factory to provide inside‑container packing photos once loading completes.
Pre‑Booking Checklist Before Confirming Your Capsule House Shipment
Complete this checklist before you sign off on freight booking, whether for 40FR or 40HQ container.
✅ Obtain official factory packing drawing with exact outer dimension (length / width / height) of your capsule house after packing
✅ Confirm assembly mode: A/E fully‑assembled / M semi‑assembled / S/V/R/C extra‑large fully‑assembled
✅ Confirm gross weight (cargo weight plus protective packing accessories & separate shell‑parts for M‑Series semi‑assembled versions)
✅ Verify which container type your capsule‑house series technically requires (40FR or 40HQ)
✅ If M‑Series semi‑assembled selected: obtain official on‑site assembly documentation, confirm required local labour‑time and manpower requirement
✅ For 40FR shipment: confirm destination port has flat‑rack receiving capability and heavy‑lift crane resources, confirm industrial‑grade ocean‑going heavy‑duty tarpaulin shall be applied; if planning to load two small‑size units on 40FR, verify dimension and payload compliance
✅ Clarify all extra charges: flat‑rack surcharge, tarpaulin cost, port handling fee, potential demurrage threshold; for M‑Series semi‑assembled plan local‑labour budget
✅ Confirm cargo protection measures: tarpaulin grade, lashing‑point locations, anti‑collision foam arrangement
✅ Request pre‑departure photos of finished packing and securing work from manufacturer
✅ Prepare complete export documentation: commercial invoice, packing list, certificate of origin, HS‑code 9406.90.0090 related papers; M‑Series semi‑assembled also requires part‑lists and assembly drawings
✅ Share dimension & weight data with your freight forwarder to receive binding, all‑in freight quotation
Note: Freight forwarders cannot give accurate pricing without real packing dimensions and weight data. Do not rely on estimated approximate figures.
FAQ About Capsule House Shipping Containers
Q1: Can large balcony‑equipped extra‑large S/V‑Series fully‑assembled capsule house go into a 40HQ to save freight cost?
A: No. Extra‑large S/V/R/C‑Series overall outer profile exceeds 40HQ limits and must ship via 40FR flat‑rack. For 40HQ‑based large‑space options, choose M‑Series semi‑assembled. A‑Series and E‑Series come with factory‑integrated balconies and can load whole into 40HQ without balcony removal.
Q2: Will goods get rust or water damage for 40FR flat‑rack shipment?
A: When industrial‑grade heavy‑duty ocean‑going tarpaulin is properly installed and fastened by factory, it delivers qualified ocean‑voyage protection. Specify tarpaulin requirement and request covering photos before sailing.
Q3: Can two large capsule‑house units be loaded onto one single 40FR flat‑rack?
A: For extra‑large fully‑assembled units (S/V/R/C‑Series, 8‑10.5 tons each): almost impossible, normally only 1 unit per 40FR. Two small‑size fully‑assembled capsule‑house units are allowed on one 40FR flat‑rack, only if overall outer dimension and container payload limits are fully satisfied.
Q4: What happens if destination port does not accept flat‑rack cargo?
A: You will face trans‑shipment adjustments, additional handling expenses or have to switch to alternative port of discharge. A/E‑Series or M‑Series 40HQ solution is a practical alternative. Always confirm port receiving capacity before booking 40FR shipments.
Q5: What documents does the supplier need to provide for shipping?
A: Packing dimension & gross‑weight sheet, packing photos, commercial invoice, packing list, certificate of origin, HS‑code classification information. For M‑Series semi‑assembled orders, also require full‑set on‑site assembly drawings and part‑lists.
Q6: What trade‑offs for M‑Series semi‑assembled capsule‑house shipped via 40HQ?
A: Pros: much lower ocean freight; closed 40HQ avoids tarpaulin‑related risks; no dependency on port flat‑rack equipment; fast assembly finished by 2‑3 workers within 2‑3 hours with low labour‑cost. Cons: exterior‑shell on‑site assembly work is required after cargo arrival.
Get Accurate Shipping Advice For Your Capsule House Import Project
Unsure whether 40FR or 40HQ fits your selected capsule‑house series? ROVELLC provides official packing dimensions, gross‑weight data and loading‑reference photos for every series unit, including A/E‑Series and M‑Series options. We can also give practical tips for your freight‑forwarder communication and local‑site manpower planning.
Contact us today to receive model‑specific packing information and export‑document checklist for your overseas import plan.
